Phoenix Services uses portable equipment to provide onsite electrical and gas process heating requirements for the following specialized needs.

  • Preheat and Post Weld Heat Treating (PWHT) of Piping and Pressure Vessel Welds [ view pictures ]
  • Process Line Thawing
  • Temporary Site Furnaces (gas and electric) [ view pictures ]
  • Refractory Dry Outs in Pressure Vessels, Autoclaves, Piping and Ductwork [ view pictures ]
  • Paint and Phenolic Coating Curing in Pressure Vessels and Piping
  • Hardness Testing
  • Sales and Rentals of Heat Treating Equipment and Supplies [ view pictures ]

Preheat and Post Weld Heat Treating (PWHT) of piping and pressure essel welds

Heat Treating Preheat during welding of tubes and subsequent preweld heat treating of repairs to a superheater outlet header during the installation and repair of approximately 200 2" tubes. Header dimension 28" O.D. 3 " W.T. 60' 0" O.A.L.
Location: New Orleans, La.
Heat Treating Multiple Heat Treating Consoles utilized for Preheat and Post Weld Heat Treating of a superheat outlet header in an oil fired power plant
Heat Treating Preheat during weld and subsequent Post Weld Heat Treatment of a pressure vessel girth seam. Material: Carbon % Mo Alloy Steel 94" O.D. x 4" W.T.
Location: New Orleans, La.
Heat Treating Post Weld Heat Treat of an entire pressure vessel using high velocity fuel fire burners and electric resistance booster heater. Pressure vessel 25' diameter x 1' W.T. x 25' O.A.L. Material: Plain Carbon Steel
Location: Central Tennessee
Heat Treating Mobile Heat Treating rig used to Post Weld Heat Treat 20" x 12" steam line welds in a commercial refrigeration unit.
Location: San Francisco

Temporary Site Furnaces (gas and electric)

Heat Treating Temporary Site Furnace for Post Weld Heat Treat of alloy steel forging. Furnace size 12' x 12' x 40' long Type: Lift-off cover with permanent hearth, fired with 360 KW of electric resistance heaters.

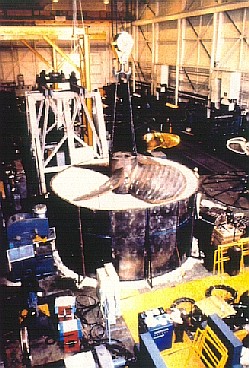

Heat Treating Fabrication and erection of a 20' diameter x 12' high circular temporary furnace for the annealing of five 18' diameter manganese bronze ship propellers. Each propeller approximately 18' foot diameter, weight 20,000 lbs.

Refractory Dry Outs in Pressure Vessels, Autoclaves, Piping and Ductwork

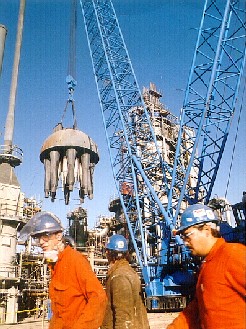

Heat Treating Refractory curing of refractory lined steel internals and cyclone piping for refinery FCCU.
Heat Treating Catalytic Cracking Unit revamp
Location: Southern California

Sales and Rentals of Heat Treating Equipment and Supplies

Heat Treating Heat Treating Consoles
Portion of Inventory for Sales and Rental Fleet.
